Main features

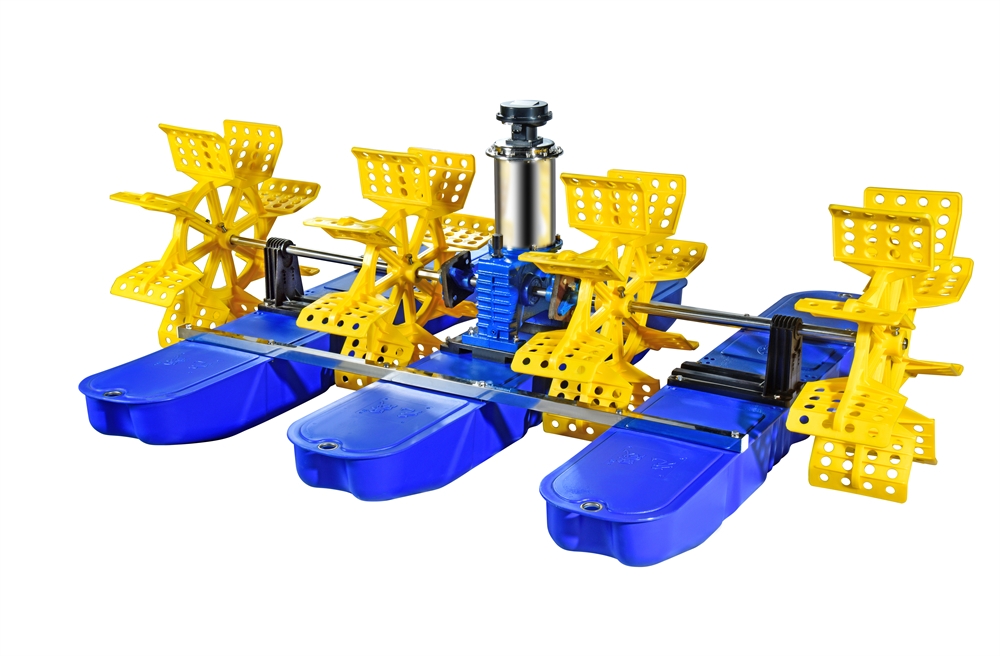

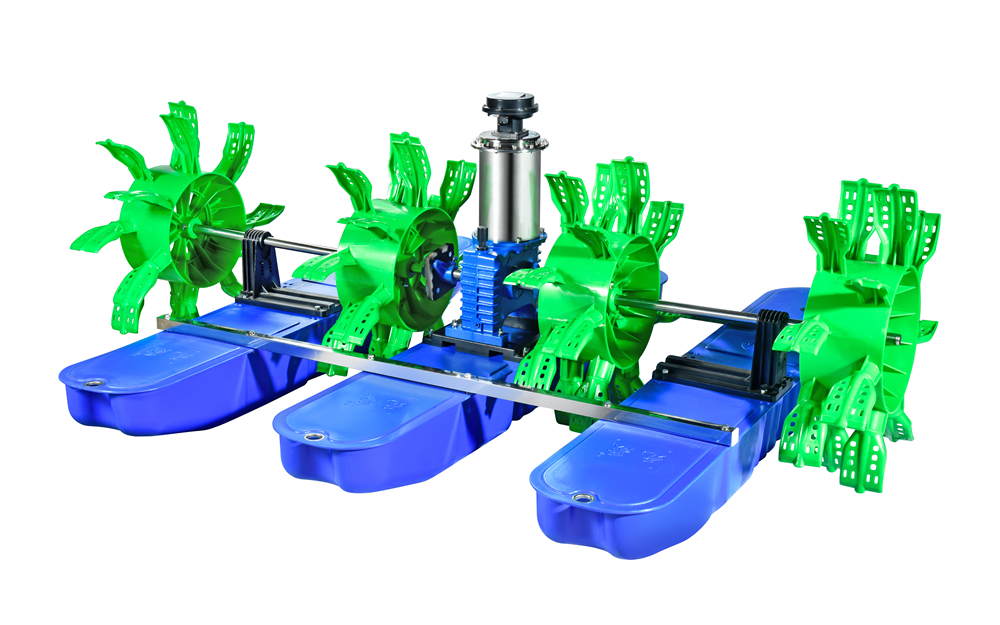

· Yuansheng brand water wheel aerator is the latest popular model of our company according to the current world
· And made a major breakthrough in the transmission mechanism.
· Using curved umbrella gear to replace turbine vortex rod, energy saving and efficient, saving more than 20% than that of traditional models.
· Arc bevel gear is made of chromium manganese titanium alloy steel, with carbon and nitrogen copenetration on the surface, high hardness and long service life.
· Use mechanical seal to ensure no oil leakage pollution.
· The motor is equipped with a protector to avoid the accidental burning of the motor.
Complete machine plastic float boat, nylon impeller, stainless steel rotating shaft and bracket.
| 型號(hào)/Type | 電壓Voltage(V) | 功率Power(kW) | 葉輪轉(zhuǎn)速 Impeller speed(r/min) | 增氧能力Oxygenation capacity(kg/h) | 動(dòng)力效率Dynamic efficiency(kg/Kwh) | 負(fù)荷(畝)Load(mu) |
| YC-0.75 | 380 | 0.75 | 100 | ≥1.1 | ≥1.25 | 1-5 |
| YC-1.5 | 380 | 1.5 | 100 | ≥1.9 | ≥1.25 | 2-8 |
| YYC-0.75 | 380 | 0.75 | 100 | ≥1.1 | ≥1.25 | 1-5 |
| YYC-1.5 | 380 | 1.5 | 100 | ≥1.9 | ≥1.25 | 2-8 |
| YYC-2.2 | 380 | 2.2 | 100 | ≥2.6 | ≥1.75 | 3-10 |
